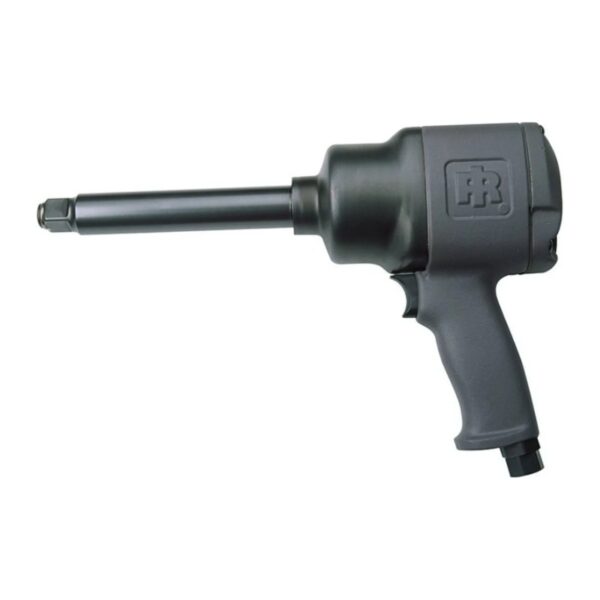

Ingersoll Rand 2171XP-6 air impact wrench, extended anvil 152 mm

Ingersoll Rand 2171XP-6 trykkluftsmuttertrekker, forlenget ambolt 152 mm – 1″ firkant, maks. 1695 Nm, 5,47 kg

Trykkluftsdrevet muttertrekker. Verktøyfeste 1″ firkant, maks. løsnemoment 1695 Nm, vekt 5,47 kg.

Be om tilbud
Be om informasjon Be om service, reservedeler eller support
Produktnummer: 2171XP-6 Kategori: Merke:

Features

2171XP-6 er en trykkluftdrevet muttertrekker fra Ingersoll Rand for tunge forbindelser innen industri, vedlikehold og tung kjøretøyservice.

  • Verktøyfeste: 1″ firkant
  • Maks. løsnemoment: 1695 Nm
  • Anbefalt arbeidsområde: 407–1356 Nm
  • Turtall: 6000 o/min
  • Slag per minutt: 1025
  • Slagverk: Twin Hammer
  • Ambolt: forlenget, 152 mm
  • Vekt: 5,47 kg
  • Luftforbruk: 21,5 l/s
  • Lufttilkobling: 3/8″ NPT
  • Min. slangediameter: 13 mm

ProTech er autorisert forhandler av Ingersoll Rand – kontakt oss for tilbud og leveringstid.

Profesjonelle verktøy i Norge og Norden.

Tilleggsinformasjon

Usage class

Industrial
Tool holder

1″ square drive, with hog ring
Shaft

extended, 152 mm
Impact mechanism

Twin Hammer
Recommended working torque

407–1356 Nm
Max. breakaway torque

1695 Nm
Speed

6000 rpm
Blows per minute

1025 bpm
Weight

5.47 kg
Air consumption

21.5 l/s
Air fitting

3/8″ NPT
Hose

min 13 mm
ProTechPDFProduktkatalogIngersoll Rand Industrial Production Tools – CatalogueLast ned PDF8,1 MB, PDF
ProTechPDFBrukermanualIngersoll Rand 2161XP-2171XP Product InformationLast ned PDF784 KB, PDF
ProTechPDFSprengskisse (Exploded view)Ingersoll Rand 2161XP-2171XP Parts ListLast ned PDF1,0 MB, PDF
ProTechPDFSikkerhetsinformasjonIngersoll Rand Impact Wrench Safety InformationLast ned PDF6,6 MB, PDF

Omtaler

Det er ingen omtaler ennå.

Bli den første til å omtale «Ingersoll Rand 2171XP-6 trykkluftsmuttertrekker, forlenget ambolt 152 mm – 1″ firkant, maks. 1695 Nm, 5,47 kg»

Din e-postadresse vil ikke bli publisert. Obligatoriske felt er merket med *

How can we help?

Need a quote, technical advice, service or spare parts? Get in touch.

Write to usRequest a quoteService and spare parts

Compare models

Similar models in the same category – technical data side by side.

You are viewingIngersoll Rand 2171XP-6 air impact wrench, extended anvil 152 mm2171XP-6Ingersoll Rand 2171XP air impact wrench2171XPIngersoll Rand 271 air impact wrench271Ingersoll Rand 285B-6 air impact wrench, D-handle, extended anvil 152 mm285B-6Ingersoll Rand 295A-6 air impact wrench, extended anvil 152 mm295A-6Ingersoll Rand 285B air impact wrench, D-handle285B
PriceRequest quote23 463 kr (inkl. mva)18 770 kr (ekskl. mva)Request quote11 963 kr (inkl. mva)9 570 kr (ekskl. mva)11 963 kr (inkl. mva)9 570 kr (ekskl. mva)11 675 kr (inkl. mva)9 340 kr (ekskl. mva)
Drive1″ square drive, with hog ring1″ square drive, with hog ring1″ square drive1″ square drive1″ square drive1″ square drive
Max. torque1695 Nm1695 Nm1627 Nm2000 Nm2000 Nm2000 Nm
Working torque407–1356 Nm407–1356 Nm1491 Nm136–1220 Nm136–1220 Nm136–1220 Nm
Speed6000 rpm6000 rpm–5000 rpm5000 rpm5000 rpm
Blows per minute1025 bpm1025 bpm1000 bpm700 bpm700 bpm700 bpm
Impact mechanismTwin HammerTwin Hammer–Swinging hammerSwinging hammerSwinging hammer
Weight5.47 kg5.47 kg5.67 kg12.6 kg11.4 kg11.2 kg
Length–226 mm–519 mm449 mm360 mm
Noise level–94.7 dB(A)–99.8 dB(A)97.0 dB(A)99.8 dB(A)
Vibration–10.3 m/s²–6.4 m/s²5.1 m/s²6.0 m/s²
Air consumption21.5 l/s21.5 l/s–17.5 l/s17.5 l/s17.5 l/s
Air fitting3/8″ NPT3/8″ NPT–1/2″ NPT1/2″ NPT1/2″ NPT
Hosemin 13 mmmin 13 mm–min 13 mmmin 13 mmmin 13 mm
Handle–––D-handle–D-handle
