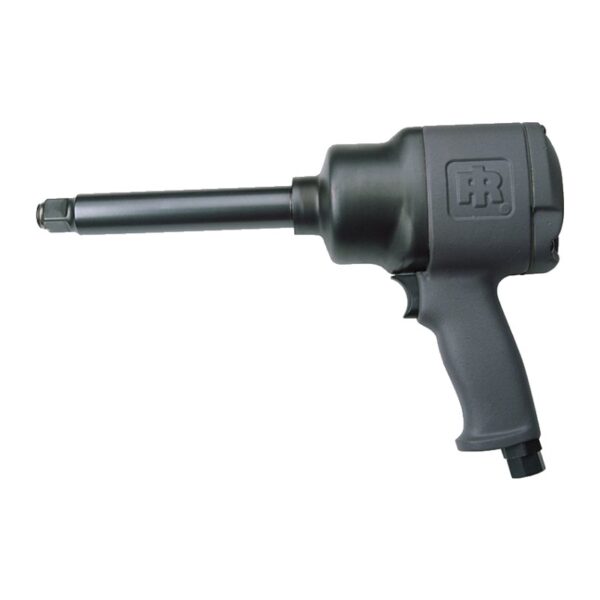

Ingersoll Rand 2161XP-6 air impact wrench, extended anvil 152 mm

Ingersoll Rand 2161XP-6 air impact wrench, extended anvil 152 mm – 3/4″ square drive, max 1695 Nm, 5.35 kg

23 463 kr (incl. VAT)18 770 kr (excl. VAT)

Air impact wrench. Drive 3/4″ square drive, max breakaway torque 1695 Nm, weight 5.35 kg.

Request a Quote
Request info Request service, spare parts or support

Available to order – delivery 5–10 working days

  • Authorised Ingersoll Rand distributor & service centre
  • Free shipping from SEK 5,000 (excl. VAT)
  • Delivery in 5–10 working days across the Nordics
  • Klarna, card, Apple/Google Pay & invoice for businesses
  • Business: prices excl. VAT – quotes on request
SKU: 2161XP-6 Category: Brand:

Features

2161XP-6 is an air impact wrench from Ingersoll Rand for heavy-duty joints in industry, maintenance and heavy vehicle service.

  • Drive: 3/4″ square drive
  • Max breakaway torque: 1695 Nm
  • Recommended working range: 407–1356 Nm
  • Free speed: 6000 rpm
  • Impacts per minute: 1025
  • Impact mechanism: Twin Hammer
  • Anvil: extended, 152 mm
  • Weight: 5.35 kg
  • Air consumption: 21.5 l/s
  • Air inlet: 3/8″ NPT
  • Min. hose size: 13 mm

ProTech is an authorised Ingersoll Rand distributor – contact us for a quote and delivery time.

Professional tools in Sweden and the Nordics.

Additional information

Usage class

Industrial
Tool holder

3/4″ square drive, with hog ring
Shaft

extended, 152 mm
Impact mechanism

Twin Hammer
Recommended working torque

407–1356 Nm
Max. breakaway torque

1695 Nm
Speed

6000 rpm
Blows per minute

1025 bpm
Weight

5.35 kg
Air consumption

21.5 l/s
Air fitting

3/8″ NPT
Hose

min 13 mm
ProTechPDFProduct CatalogIngersoll Rand Industrial Production Tools – CatalogueDownload PDF8.1 MB, PDF
ProTechPDFUser ManualIngersoll Rand 2161XP-2171XP Product InformationDownload PDF733 KB, PDF
ProTechPDFExploded ViewIngersoll Rand 2161XP-2171XP Parts ListDownload PDF971 KB, PDF
ProTechPDFSafety InformationIngersoll Rand Impact Wrench Safety InformationDownload PDF6.1 MB, PDF

Reviews

There are no reviews yet.

Be the first to review “Ingersoll Rand 2161XP-6 air impact wrench, extended anvil 152 mm – 3/4″ square drive, max 1695 Nm, 5.35 kg”

Your email address will not be published. Required fields are marked *

How can we help?

Need a quote, technical advice, service or spare parts? Get in touch.

Write to usRequest a quoteService and spare parts

Compare models

Similar models in the same category – technical data side by side.

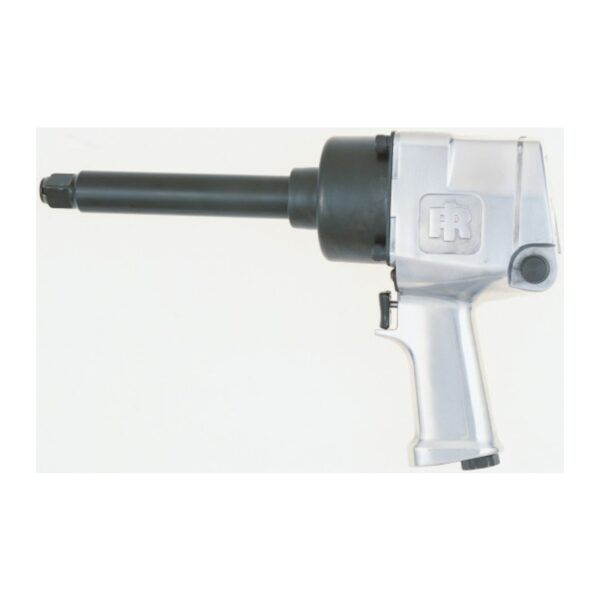

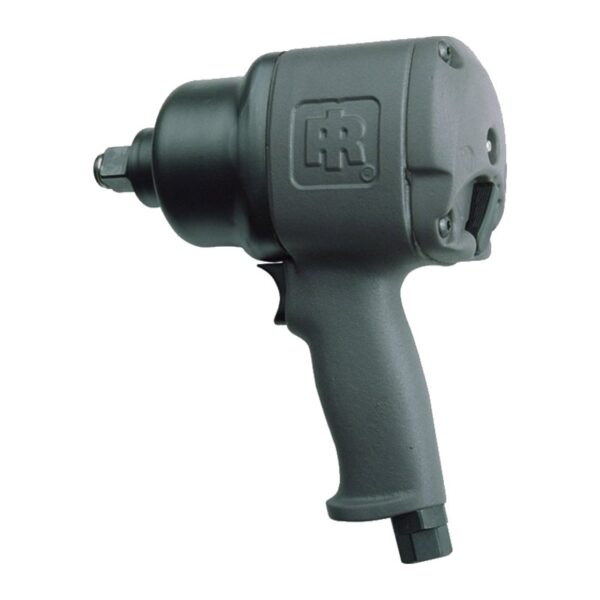

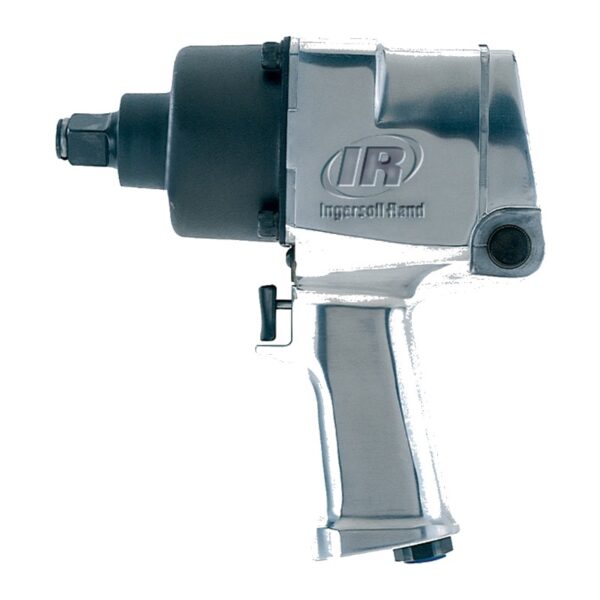

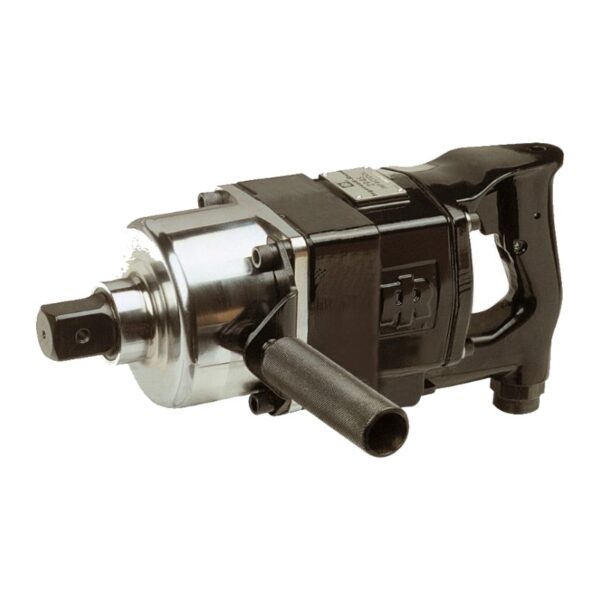

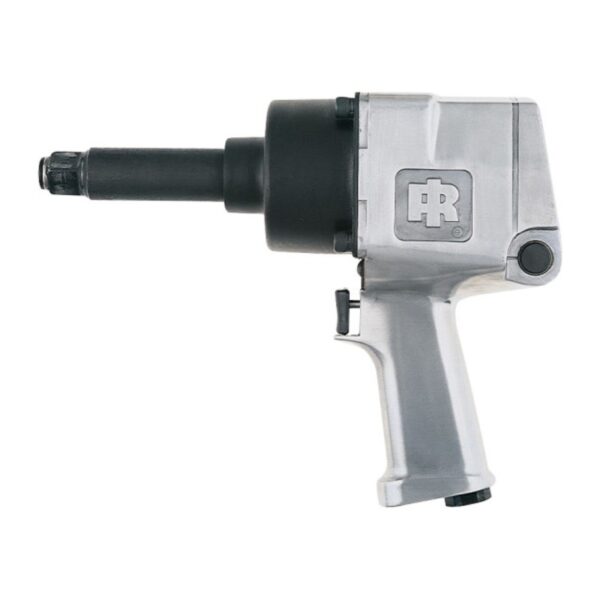

You are viewingIngersoll Rand 2161XP-6 air impact wrench, extended anvil 152 mm2161XP-6Ingersoll Rand 2161XP air impact wrench2161XPIngersoll Rand 261-3 air impact wrench, extended anvil 76 mm261-3Ingersoll Rand 261-6 air impact wrench, extended anvil 152 mm261-6Ingersoll Rand 261 air impact wrench261Ingersoll Rand 2920B1-EU air impact wrench, D-handle2920B1-EU
Price23 463 kr (incl. VAT)18 770 kr (excl. VAT)22 519 kr (incl. VAT)18 015 kr (excl. VAT)15 900 kr (incl. VAT)12 720 kr (excl. VAT)Request quote15 406 kr (incl. VAT)12 325 kr (excl. VAT)52 794 kr (incl. VAT)42 235 kr (excl. VAT)
Drive3/4″ square drive, with hog ring3/4″ square drive, with hog ring3/4″ square drive3/4″ square drive3/4″ square drive3/4″ square drive, thru-hole (hog ring and pin)
Max. torque1695 Nm1695 Nm1627 Nm1627 Nm1627 Nm1492 Nm
Working torque407–1356 Nm407–1356 Nm1491 Nm1491 Nm1491 Nm339–1085 Nm
Speed6000 rpm6000 rpm–––5000 rpm
Blows per minute1025 bpm1025 bpm1000 bpm1000 bpm1000 bpm950 bpm
Impact mechanismTwin HammerTwin Hammer–––Twin Hammer
Weight5.35 kg5.35 kg5.67 kg5.67 kg5.67 kg5.98 kg
Length–216 mm–––318 mm
Noise level–94.7 dB(A)–––87.9 dB(A)
Vibration–9.8 m/s²–––19.9 m/s²
Air consumption21.5 l/s21.5 l/s–––17.0 l/s
Air fitting3/8″ NPT3/8″ NPT–––3/8″ NPT
Hosemin 13 mmmin 13 mm–––min 13 mm
Shaftextended, 152 mm–extended, 76 mmextended, 152 mm––
ViewViewViewViewView
