Ingersoll Rand 118MAXH

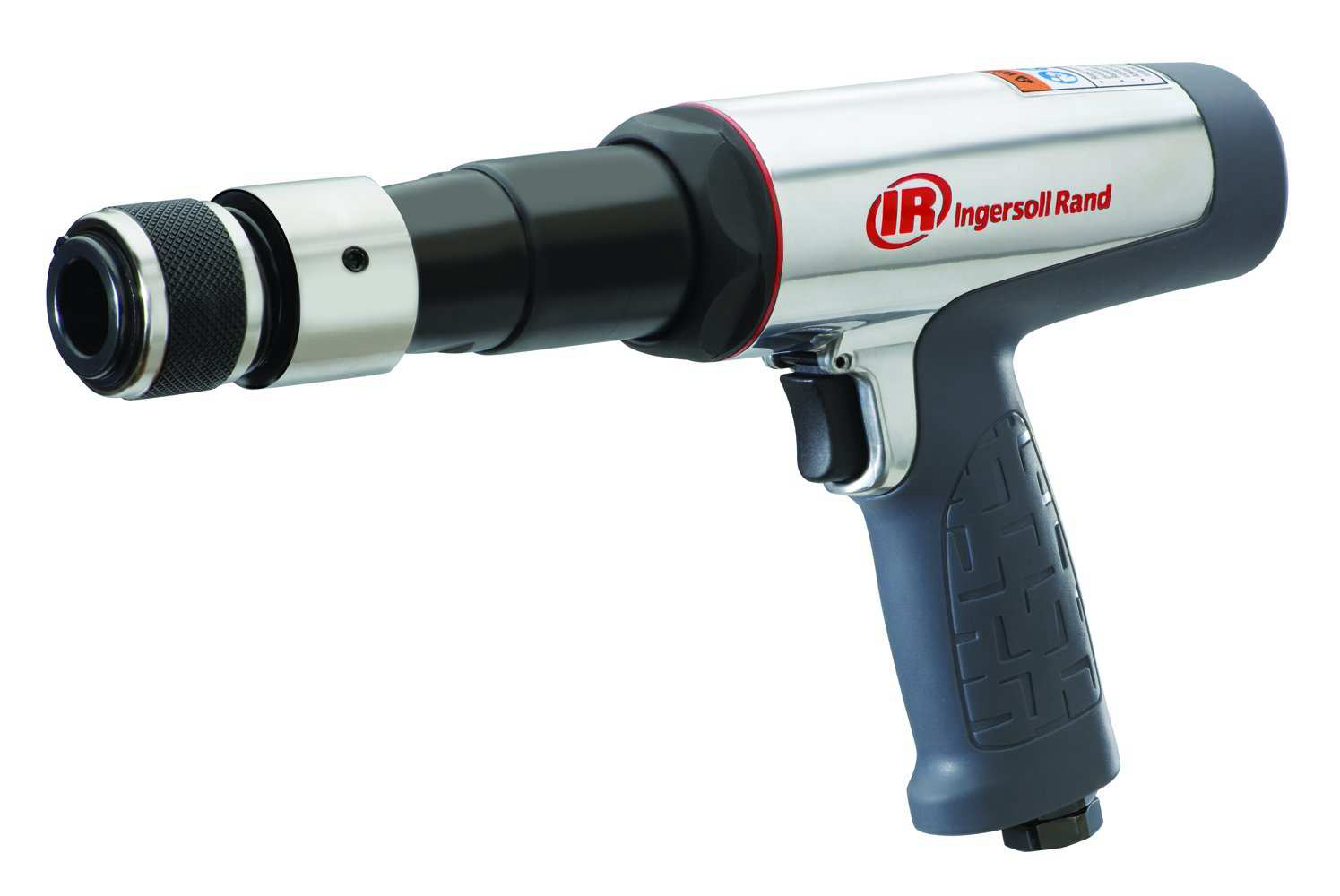

Ingersoll Rand 118MAXH Air Hammer (Extended, Hex Shank)

3 919 kr (incl. VAT)3 135 kr (excl. VAT)

Ingersoll Rand 118MAXH is an extended air hammer with hex shank, up to 2500 BPM. Weight 2.10 kg.

Request a Quote
Request info Request service, spare parts or support

Available to order – delivery 5–10 working days

  • Authorised Ingersoll Rand distributor & service centre
  • Free shipping from SEK 5,000 (excl. VAT)
  • Delivery in 5–10 working days across the Nordics
  • Klarna, card, Apple/Google Pay & invoice for businesses
  • Business: prices excl. VAT – quotes on request
SKU: 118MAXH Category: Brand:

Features

Ingersoll Rand 118MAXH is an air hammer with an extended housing and hex shank, providing extra reach for heavier and hard-to-reach jobs. The housing is made of alloy steel and the piston is heat-treated, providing long service life even in tough working conditions.

The built-in power regulator allows precise adjustment of impact force to the task at hand.

Key Features:

  • Extended housing: Extra reach for heavier and hard-to-reach jobs.
  • Up to 2500 BPM: Steady and reliable impact rate.
  • Alloy steel housing: Heat-treated piston ensures long service life.
  • Hex shank: Fits hex chisels and retainers, incl. 9512.

Technical Specifications:

  • Model: Ingersoll Rand 118MAXH
  • Impact rate: 2500 BPM
  • Shank: Hex shank
  • Stroke: 89 mm
  • Weight: 2.10 kg
  • Length: 314 mm

Professional tools in Sweden and the Nordics.

Additional information

Blows per minute

2500 BPM
Shank type

Hex shank
Stroke length

89 mm
Weight

2.10 kg
Length

314 mm
ProTechPDFProduct FlyerIngersoll Rand 118MAXH Product Data SheetDownload PDF551 KB, PDF
ProTechPDFUser ManualPDS 118MAXH SV ProtechDownload PDFPDF
ProTechPDFSafety InformationIngersoll Rand Air Percussive Tools – Safety InformationDownload PDF5.5 MB, PDF

Reviews

There are no reviews yet.

Be the first to review “Ingersoll Rand 118MAXH Air Hammer (Extended, Hex Shank)”

Your email address will not be published. Required fields are marked *

How can we help?

Need a quote, technical advice, service or spare parts? Get in touch.

Write to usRequest a quoteService and spare parts

Compare models

Similar models in the same category – technical data side by side.

You are viewingIngersoll Rand 118MAXH118MAXHIngersoll Rand 116H tryckluftshammare hex tapp116H-EU123maxairhammer2lajpg.jpg123MAX119maxairhammer2lajpg.webp119MAX116_Air_Hammer_l.jpg116-EU121hammerhrproductljpg-1.jpg121/QH-EU
Price3 919 kr (incl. VAT)3 135 kr (excl. VAT)2 075 kr (incl. VAT)1 660 kr (excl. VAT)2 963 kr (incl. VAT)2 370 kr (excl. VAT)3 644 kr (incl. VAT)2 915 kr (excl. VAT)2 075 kr (incl. VAT)1 660 kr (excl. VAT)4 794 kr (incl. VAT)3 835 kr (excl. VAT)
Weight2.10 kg1.54 kg (3.4 lbs)1.8 kg (3.9 lbs)1.59 kg (3.5 lbs)1.54 kg (3.4 lbs)1.59 kg (3.5 lbs)
Length314 mm198 mm (7.8″)182.9 mm (7.2″)114 mm (4.5″)198 mm (7.8″)194 mm (7.63″)
Noise level–104.4 dB(A)95 / 106 dB(A)106.7 dB(A)104.4 dB(A)95.3 dB(A)
Vibration–14.8 m/s² (K=2.2)5.9 m/s² (K=4.2)4.5 m/s² (K=2.3)14.8 m/s² (K=2.2)19.9 m/s² (K=4.6)
Blows per minute2500 BPM3500 BPM3530 BPM2530 BPM3500 BPM3000 BPM
Shank typeHex shankHex shank, 0.401″Round shank, 0.401″Round shank, 0.401″Round shank, 0.401″Hex shank, 0.401″
Stroke length89 mm67 mm (2.63″)67 mm (2.63″)44 mm (1.75″)67 mm (2.63″)58 mm (2.28″)
Piston diameter–17.5 mm (0.69″)19 mm (0.75″)19 mm (0.75″)17.5 mm (0.69″)19 mm (0.75″)
Air consumption (free speed)–85 L/min––85 L/min85 L/min
Air consumption (under load)–425 L/min––425 L/min425 L/min
Air inlet–1/4″ NPTF1/4″ NPTF1/4″ NPTF1/4″ NPTF1/4″ NPTF
Min. hose size–10 mm (3/8″)10 mm (3/8″)10 mm (3/8″)10 mm (3/8″)10 mm (3/8″)
ViewViewViewViewView
