Additional information
| Weight | 20,9 kg |
|---|---|
| Dimensions | 38,7 × 26,7 × 26,7 cm |
| Weight (kg) | |
| Length (mm) | |
| Series | Air motors |
| Free speed (rpm) | 571 |
| Maximum Torque (Nm) | 336 |
| Power (W) | 6080 W |
| Air Consumption (l/s) | 109 |
| Motor type | Geared vane motor |

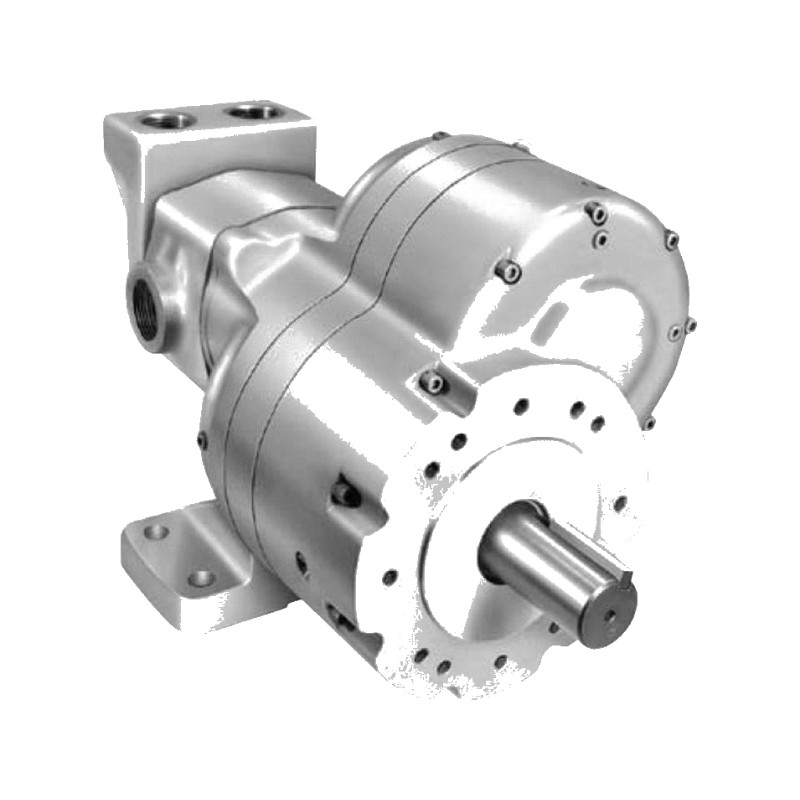

Ingersoll Rand 92RA017 Spur Gear Vane Air Motor – 92RA/92RB Series, 6.08 kW, 571 rpm, reversible
The Ingersoll Rand 92RA017 is a 92RA/92RB series reversible spur gear vane air motor. Spur gearing with a multi-vane motor for high-torque, low-speed applications – mixers, winches, conveyors and drives.
Specifications at 6.2 bar (90 psi): power 6.08 kW, free speed 571 rpm, speed at max power 274 rpm, stall torque 336 Nm, torque at max power 168 Nm, starting torque 244 Nm, air consumption 6.51 m³/min, weight 20.9 kg, length 387 mm.
Size the motor at about 70% of the lowest available air pressure – we help you choose power, gearing and mounting.
- 6.08 kW
- 571 rpm
- stall 336 Nm
- reversible
- 6.51 m³/min
Other versions in the 92 seriesCompare all in a table →
Request a quote
Price and delivery time on quotation.
How can we help?
Need a quote, technical advice, service or spare parts? Get in touch.
Compare models
Similar models in the same category – technical data side by side.
You are viewing 92RA017 |  34RA017 | 92RA014 | 34RA022 | 48RB029 | 17RB045 | |
|---|---|---|---|---|---|---|
| Price | Request quote | Request quote | Request quote | Request quote | Request quote | Request quote |
| Max. torque | 336 Nm | 311 Nm | 282 Nm | 408 Nm | 256 Nm | 423 Nm |
| Speed | 571 rpm | 325 rpm | 682 rpm | 245 rpm | 292 rpm | 121 rpm |
| Weight | 20.9 kg | 19.5 kg | 20.9 kg | 19.5 kg | 34 kg | 32.7 kg |
| Length | 387 mm | 376 mm | 387 mm | 376 mm | 403 mm | 332 mm |
| Air consumption | 109 l/s | 86.3 l/s | 109 l/s | 86.3 l/s | 42.5 l/s | 47.2 l/s |
| View | View | View | View | View |
