Additional information
| Load capacity | 45–55 kg |
|---|---|
| Max stroke | 2 m |
| Weight | 12.5 kg |
| options | rotating bottom hook (OPTRI) and floor-operated lock BIL-7343 |

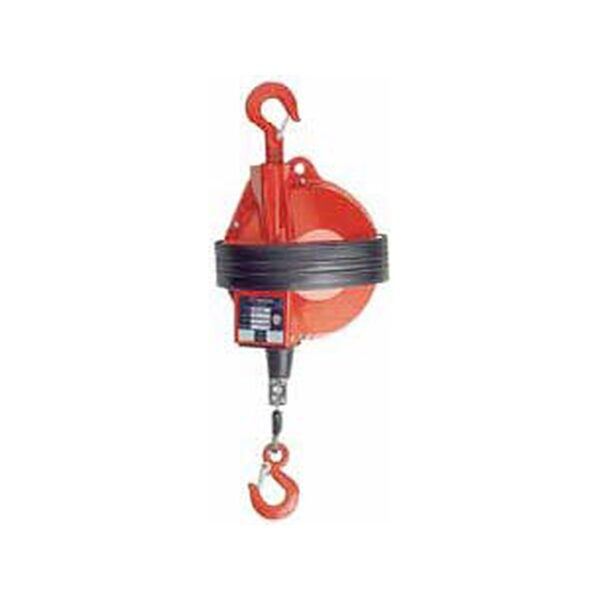

Ingersoll Rand BHD-55 Heavy Duty Spring Balancer – 45–55 kg, 2 m Stroke
Heavy duty BHD series spring balancer for heavier tools, fixtures and equipment. The tapered drum on ball bearings gives even support along the full cable travel – the load feels almost weightless.
- Load capacity: 45–55 kg
- Max stroke: 2 m
- Weight: 12.5 kg
- tapered drum on ball bearings – even support along the full stroke
- capacity adjustment by worm screw
- rotating top suspension with safety hook
- locking device holds the load at any height
- automatic safety brake if the spring breaks
- options: rotating bottom hook (OPTRI) and floor-operated lock BIL-7343
Price and lead time on request – we help you choose the right capacity, stroke and suspension for your workstation.
How can we help?
Need a quote, technical advice, service or spare parts? Get in touch.
Compare models
Similar models in the same category – technical data side by side.
You are viewing BHD-55 | BHD-15 | BHD-20 | BHD-30 | BHD-25 | BHD-35 | |
|---|---|---|---|---|---|---|
| Price | Request quote | Request quote | Request quote | Request quote | Request quote | Request quote |
| Weight | 12.5 kg | 10.3 kg | 10.6 kg | 11.5 kg | 11.2 kg | 11.8 kg |
| Load capacity | 45–55 kg | 10–15 kg | 15–20 kg | 25–30 kg | 20–25 kg | 30–35 kg |
| Max stroke | 2 m | 2 m | 2 m | 2 m | 2 m | 2 m |
| options | rotating bottom hook (OPTRI) and floor-operated lock BIL-7343 | rotating bottom hook (OPTRI) and floor-operated lock BIL-7343 | rotating bottom hook (OPTRI) and floor-operated lock BIL-7343 | rotating bottom hook (OPTRI) and floor-operated lock BIL-7343 | rotating bottom hook (OPTRI) and floor-operated lock BIL-7343 | rotating bottom hook (OPTRI) and floor-operated lock BIL-7343 |
| View | View | View | View | View |
