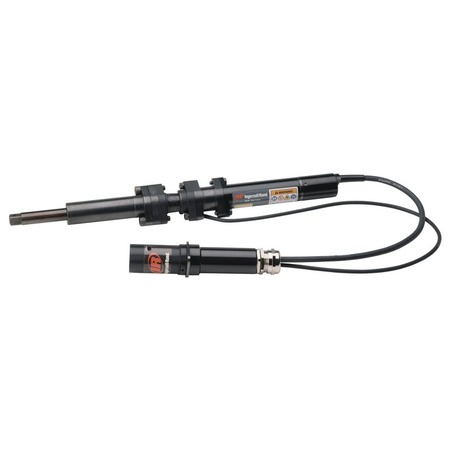

Ingersoll Rand QM3 fixtured spindle
Ingersoll Rand QM9SS01KH92S16 QM9 eldriven rak fixturspindel – max 1 000 Nm – 1″ fyrkant

Ingersoll Rand QM3SS012H62S06 QM3 DC electric straight fixtured spindle – max 12 Nm – 3/8″ square

DC electric straight fixtured spindle from the QM3 Series – max 12 Nm, 3/8″ square.

Request a Quote
Request info Request service, spare parts or support
SKU: QM3SS012H62S06 Category: Brand:

Features

The QM3SS012H62S06 is a DC electric straight fixtured spindle from Ingersoll Rand’s QM3 Series for fixtured mounting in assembly systems and multispindle units. Closed-loop transducerized control delivers better than five percent capability across all motor platforms.

The spindle requires an INSIGHT QC controller (QCD) and a GEA40 tool cable.

  • Type: DC electric straight fixtured spindle
  • Max torque: 12 Nm
  • Drive: 3/8″ square
  • Spindle: 150 mm spindle, 50 mm float, heavy spring
  • Controller: INSIGHT QC (QCD)
  • Tool cable: GEA40

ProTech is an official Ingersoll Rand dealer – contact us for a quote and system solutions.

Professional tools in Sweden and the Nordics.

Additional information

Usage class

Industrial
Handle type

Straight
Start method

Single sensor
Max. torque

12 Nm
Tool holder

3/8"
Speed

927 rpm
ProTechPDFProduct CatalogIngersoll Rand Electric Precision Fastening Systems – CatalogDownload PDF6.5 MB, PDF
ProTechPDFUser ManualIngersoll Rand QM Series – Product InformationDownload PDF5.0 MB, PDF
ProTechPDFExploded ViewIngersoll Rand QM3 Series – Parts InformationDownload PDF943 KB, PDF
ProTechPDFSafety InformationIngersoll Rand Fixtured Tool with Controller – Safety InformationDownload PDF5.3 MB, PDF

Reviews

There are no reviews yet.

Be the first to review “Ingersoll Rand QM3SS012H62S06 QM3 DC electric straight fixtured spindle – max 12 Nm – 3/8″ square”

Your email address will not be published. Required fields are marked *

How can we help?

Need a quote, technical advice, service or spare parts? Get in touch.

Write to usRequest a quoteService and spare parts

Compare models

Similar models in the same category – technical data side by side.

You are viewingIngersoll Rand QM3 fixtured spindleQM3SS012H62S06Ingersoll Rand QM3 fixtured spindleQM3SS016H62S06Ingersoll Rand QM3 fixtured spindleQM3SS008H92S06Ingersoll Rand QM3 fixtured spindleQM3SS020H92S06Ingersoll Rand QM3 fixtured spindleQM3SS020H62S06Ingersoll Rand QM3 fixtured spindleQM3SS020H62S08
PriceRequest quoteRequest quoteRequest quoteRequest quoteRequest quoteRequest quote
Drive3/8″3/8″3/8″3/8″ square drive3/8″ square drive1/2″
Max. torque12 Nm16 Nm8 Nm20 Nm20 Nm20 Nm
Speed927 rpm686 rpm1382 rpm545 rpm545 rpm545 rpm
Handle typeStraightStraightStraightInline, mountable spindleStraightStraight
Start methodSingle sensorSingle sensorSingle sensorSingle sensorSingle sensorSingle sensor
