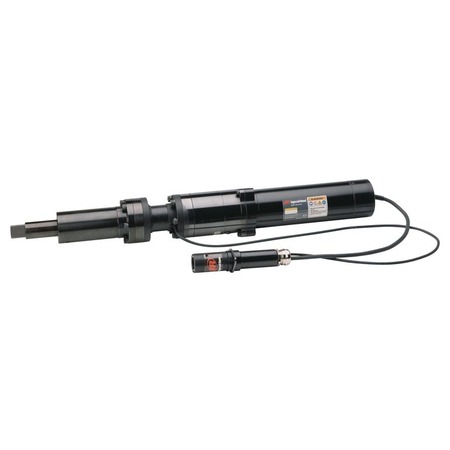

Ingersoll Rand QM9 fixtured spindle
Ingersoll Rand QM9SS01KH92S16 QM9 eldriven rak fixturspindel – max 1 000 Nm – 1″ fyrkant

Ingersoll Rand QM9MS520 QM9 DC electric motor unit for fixtured assembly – max 520 Nm

DC electric motor unit for fixtured assembly from the QM9 Series – max 520 Nm.

Request a Quote
Request info Request service, spare parts or support
SKU: QM9MS520 Category: Brand:
Automatic screw feeding? The spindle can be combined with Ingersoll Rand automatic screw feeding for a robot or manipulator. Read more ›

Features

The QM9MS520 is a DC electric motor unit from Ingersoll Rand’s QM9 Series for fixtured assembly systems, with spindle and drive chosen to suit the application. Closed-loop transducerized control delivers better than five percent capability.

The spindle requires an INSIGHT QC controller (QCD) and a GEA40 tool cable.

  • Type: DC electric motor unit for fixtured assembly
  • Max torque: 520 Nm
  • Controller: INSIGHT QC (QCD)
  • Tool cable: GEA40

ProTech is an authorised Ingersoll Rand distributor – contact us for a quote and system solutions.

Professional tools in Sweden and the Nordics.

Additional information

Usage class

Industrial
Max. torque

520 Nm
ProTechPDFProduct CatalogIngersoll Rand Electric Precision Fastening Systems – CatalogDownload PDF6.5 MB, PDF
ProTechPDFUser ManualIngersoll Rand QM Series – Product InformationDownload PDF5.0 MB, PDF
ProTechPDFExploded ViewIngersoll Rand QM9 Series – Parts InformationDownload PDF1.3 MB, PDF
ProTechPDFSafety InformationIngersoll Rand Fixtured Tool with Controller – Safety InformationDownload PDF5.3 MB, PDF
