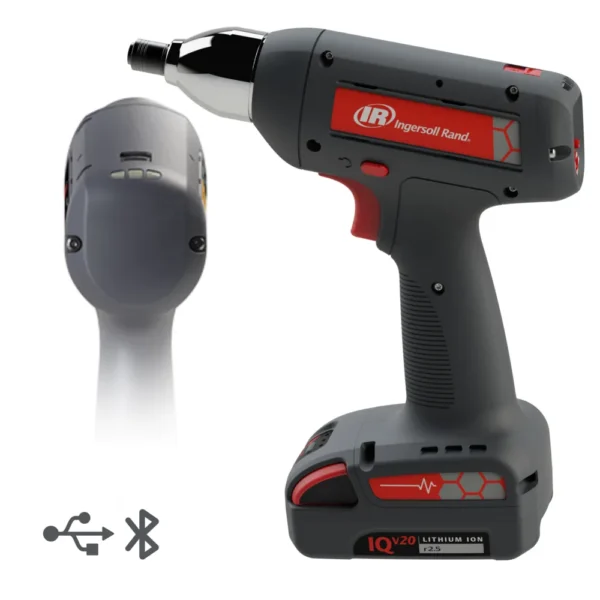

Ingersoll Rand QXBN QXB Series cordless precision pistol tool

Ingersoll Rand QXBN2PT008PQ04-EU cordless precision pistol screwdriver – 1.6–8 Nm – 1/4″ hex quick-change – 20V

Cordless QXB Series pistol screwdriver with built-in torque transducer and Bluetooth programming. 1.6–8 Nm, 1/4″ hex quick-change, 1,150 rpm, 20V (IQV20).

Request a Quote
Request info Request service, spare parts or support
SKU: QXBN2PT008PQ04-EU Categories: , , Brand:

Features

The QXBN2PT008PQ04-EU from Ingersoll Rand’s QXB Series is a cordless pistol screwdriver for precision assembly. The built-in torque transducer measures every tightening, and the tool is easily programmed wirelessly via Bluetooth.

Up to 32 programmable tightening configurations and on-board storage of 1,200 tightening results. Programming via Bluetooth with the INSIGHT Connect app, or via USB (INSIGHTqcx controller, INSIGHT Connect Android app or ICS software).

  • Type: cordless precision pistol screwdriver
  • Torque range: 1.6–8 Nm
  • Drive: 1/4″ hex quick-change
  • Free speed: 1,150 rpm
  • Weight: 0.91 kg
  • Battery platform: 20V (IQV20)
  • Communication: Bluetooth, USB
  • Display: no

ProTech is an authorised Ingersoll Rand distributor – contact us for a quote, demonstration and delivery time.

Professional tools in Sweden and the Nordics.

Additional information

Usage class

Industrial
Drive

1/4 QC
Handle type

Pistol
Torque range (Nm)

1.6–8
Free speed (rpm)

1150
Side to centre (mm)

20.3–26.0
Weight (kg)

0.91
Length (mm)

215.4
Battery voltage (V)

20
Power source

Battery
Connectivity

Cordless
Ports / interfaces

Bluetooth + USB
Software compatibility

INSIGHT Connect™
Display

No
ProTechPDFProduct FlyerIngersoll Rand QX Connect Series – BrochureDownload PDF5.9 MB, PDF
ProTechPDFProduct CatalogIngersoll Rand Electric Precision Fastening Systems – CatalogDownload PDF6.5 MB, PDF
ProTechPDFUser ManualIngersoll Rand QX Connect Series – User ManualDownload PDF5.6 MB, PDF
ProTechPDFExploded ViewIngersoll Rand QX Connect Series – Parts InformationDownload PDF8.7 MB, PDF
ProTechPDFSafety InformationIngersoll Rand QX Connect Series – Safety InformationDownload PDF7.4 MB, PDF

Reviews

There are no reviews yet.

Be the first to review “Ingersoll Rand QXBN2PT008PQ04-EU cordless precision pistol screwdriver – 1.6–8 Nm – 1/4″ hex quick-change – 20V”

Your email address will not be published. Required fields are marked *

How can we help?

Need a quote, technical advice, service or spare parts? Get in touch.

Write to usRequest a quoteService and spare parts

Compare models

Similar models in the same category – technical data side by side.

You are viewingIngersoll Rand QXBN QXB Series cordless precision pistol toolQXBN2PT008PQ04-EUIngersoll Rand QXBD QXB Series cordless precision pistol tool with displayQXBD2PT004PQ04-EUIngersoll Rand QXBD QXB Series cordless precision angle nutrunner with displayQXBD2AT027PS06-EUIngersoll Rand QXBD QXB Series cordless precision angle nutrunner with displayQXBD2AT027ES06-EUIngersoll Rand QXBD QXB Series cordless precision angle nutrunner with displayQXBD2AT018PS06-EUIngersoll Rand QXBD QXB Series cordless precision angle nutrunner with displayQXBD2AT010PS06-EU
PriceRequest quoteRequest quoteRequest quoteRequest quoteRequest quoteRequest quote
Drive1/4 QC1/4 QC3/8 SQ3/8 SQ3/8 SQ3/8 SQ
Handle typePistolPistolAngleAngleAngleAngle
Torque range (Nm)1.6–80.8–45.4–275.4–273.6–182–10
Free speed (rpm)11501500330330500936
Side to centre (mm)20.3–26.020.3–26.01717.21312.5
Weight (kg)0.910.911.681.681.271.18
Length (mm)215.4215.4552552542525
Battery voltage (V)202020202020
Power sourceBatteryBatteryBatteryBatteryBatteryBattery
ConnectivityCordlessCordlessCordlessCordlessCordlessCordless
Ports / interfacesBluetooth + USBBluetooth + USBBluetooth + USBBluetooth + USBBluetooth + USBBluetooth + USB
Software compatibilityINSIGHT Connect™INSIGHT Connect™INSIGHT Connect™INSIGHT Connect™INSIGHT Connect™INSIGHT Connect™
DisplayNoYesYesYesYesYes
