SS100 Series Vane Air Starters (1–15 L Engines)

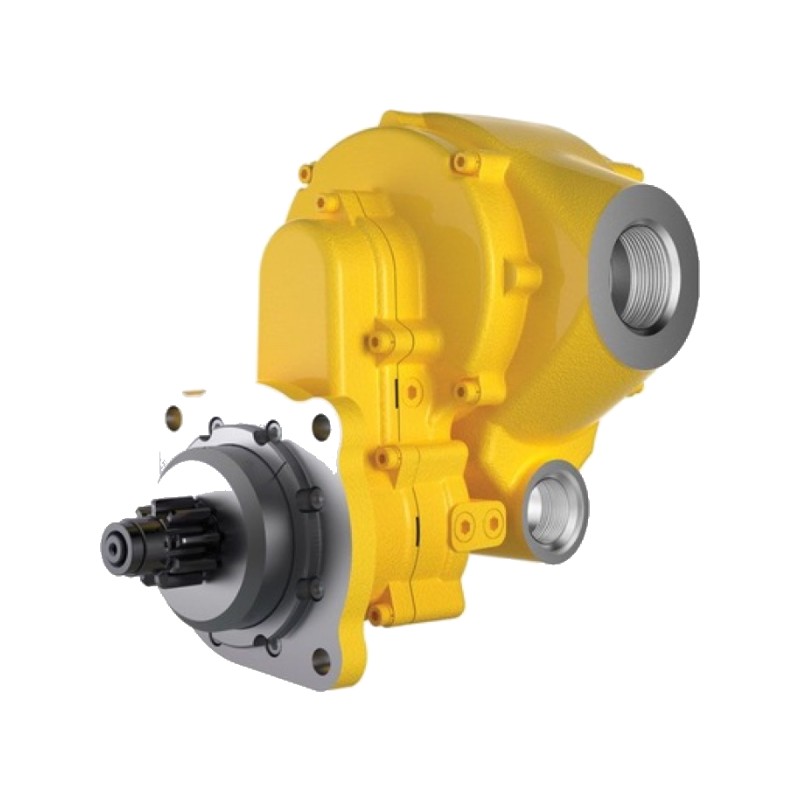

Ingersoll Rand SS100 Series Vane Air Starters for Small Engines (2.3–13.8 hp)
The SS100 is a compact vane-motor air starter for smaller diesel and gas engines – generator sets, pumps, compressors, smaller marine and off-highway engines. An overhung nose delivers higher torque, the starter is lube-free and also runs on natural gas.
- Lube-free vane motor – no inlet air lubrication required.
- Air or natural gas, 2.1–10.3 bar.
- Pre-engaged and inertia versions.
- SAE 1, SAE 3 and SAE 4 flanges, a choice of pinions (DP and module), 6 inlet/exhaust position combinations.
Model code
Example SS100P01R77-21: SS100P – pre-engaged SS100, 01 – SAE 1 flange, R – right-hand rotation, 77 – pinion (9 teeth, module 3), 2 – inlet position, 1 – exhaust position. Code XX means a pinion to engine specification.
Orientation – same starter, different position
The orientation code at the end of the model number (e.g. -02FJ, -2N or -POS) only defines the inlet, exhaust, drive housing and flange positions on the engine. The starter itself is the same. Each product page lists the same starter in other orientations – choose the one that fits your engine installation, or ask us.
SS100 Series performance
| Model | Pressure (bar) | Breakaway torque (Nm) | Max power (kW) | Speed at max power (rpm) | Air flow (L/s) |
|---|---|---|---|---|---|
| SS100 | 2.1 | 22 | 1.7 | 1290 | 52 |
| SS100 | 4.1 | 53 | 4.8 | 1625 | 101 |
| SS100 | 6.2 | 75 | 7.2 | 1800 | 149 |
| SS100 | 8.3 | 102 | 10.3 | 1900 | 196 |
* Performance data from Ingersoll Rand. Actual performance depends on configuration, supply piping and engine.
Why ProTech?
- Official Ingersoll Rand distributor and service centre in the Nordics – genuine starters, spare parts and factory warranty.
- Technical advice: we help you choose the right arc, gear ratio, flange, pinion, rotation and orientation for your engine.
- Service and support: service kits, genuine spare parts and Ingersoll Rand service.
Request a quote or technical advice
Request a quote or technical advice – send us the engine model or your current starter code. We will find the right SS100 configuration for your engine.
Technical documentation
No match, or you only know the engine? Send engine details – we reply with a quotation →
Showing all 22 results
| Model | Engagement | Flange | Pinion | Rotation | ||
|---|---|---|---|---|---|---|
 | SS100-SERIES | – | – | – | – | Request a quote |
| SS100P01R09-21 | Pre-engaged | SAE 1 | R09 · 9 T · DP 8/10 | Right-hand | Request a quote |
| SS100P01R13-21 | Pre-engaged | SAE 1 | R13 · 10 T · DP 8/10 | Right-hand | Request a quote |
| SS100P01R15-21 | Pre-engaged | SAE 1 | R15 · 10 T · DP 8/10 | Right-hand | Request a quote |
| SS100P01R15-23 | Pre-engaged | SAE 1 | R15 · 10 T · DP 8/10 | Right-hand | Request a quote |
| SS100P01R29-21 | Pre-engaged | SAE 1 | R29 · 12 T · DP 8/10 | Right-hand | Request a quote |
| SS100P01R29-23 | Pre-engaged | SAE 1 | R29 · 12 T · DP 8/10 | Right-hand | Request a quote |
| SS100P01R77-21 | Pre-engaged | SAE 1 | R77 · 9 T · module 3 | Right-hand | Request a quote |
| SS100P01R77-23 | Pre-engaged | SAE 1 | R77 · 9 T · module 3 | Right-hand | Request a quote |
| SS100P01R85-21 | Pre-engaged | SAE 1 | R85 · 11 T · module 3 | Right-hand | Request a quote |
| SS100P01RXX-21 | Pre-engaged | SAE 1 | RXX · to engine spec | Right-hand | Request a quote |
| SS100P01RXX-23 | Pre-engaged | SAE 1 | RXX · to engine spec | Right-hand | Request a quote |
| SS100P03R15-23 | Pre-engaged | SAE 3 | R15 · 10 T · DP 8/10 | Right-hand | Request a quote |
| SS100P03R25-21 | Pre-engaged | SAE 3 | R25 · 11 T · DP 6/8 | Right-hand | Request a quote |
| SS100P03R29-21 | Pre-engaged | SAE 3 | R29 · 12 T · DP 8/10 | Right-hand | Request a quote |
| SS100P03R31-21 | Pre-engaged | SAE 3 | R31 · 12 T · DP 6/8 | Right-hand | Request a quote |
| SS100P03R31-23 | Pre-engaged | SAE 3 | R31 · 12 T · DP 6/8 | Right-hand | Request a quote |
| SS100P03R77-21 | Pre-engaged | SAE 3 | R77 · 9 T · module 3 | Right-hand | Request a quote |
| SS100P03RXX-21 | Pre-engaged | SAE 3 | RXX · to engine spec | Right-hand | Request a quote |
| SS100P04R19-23 | Pre-engaged | SAE 4 | R19 · 11 T · DP 8/10 | Right-hand | Request a quote |
| SS100P04R77-21 | Pre-engaged | SAE 4 | R77 · 9 T · module 3 | Right-hand | Request a quote |
| SS100P04RXX-23 | Pre-engaged | SAE 4 | RXX · to engine spec | Right-hand | Request a quote |
