Vane Air Starters (SS Series)
Ingersoll Rand SS Series Vane Air Starters
ProTech is an official Ingersoll Rand distributor and service centre in the Nordics, supplying starting solutions for diesel and gas engines in industrial, marine, energy and heavy-duty applications. Ingersoll Rand SS Series vane air starters combine high starting power, compact design and proven reliability for engines where dependable starting is critical.
SS Series vane air starters are engineered for fast and reliable starting of diesel and gas engines in demanding industrial environments. The robust vane motor delivers high starting torque, rapid acceleration and long service life, even with frequent start cycles.
Vane technology uses compressed air as its power source and transfers power efficiently to the engine flywheel. This makes the SS Series a dependable alternative where electric starting systems are unsuitable or where maximum operational reliability is required.
The compact design and high power-to-weight ratio make the SS Series ideal for generator sets, marine engines, industrial diesel engines, construction equipment and other heavy-duty applications.
Why choose SS Series vane air starters?
- High starting performance – reliable starting even under demanding conditions
- Proven vane technology – robust construction with long service life
- Compact design – easy installation in confined spaces
- Compressed-air driven – ideal for marine and industrial environments
- Low maintenance cost – simple construction with few wearing parts
SS Series models – technical overview
| Series | Technology | Power range | Typical applications |
|---|---|---|---|
| SS100 | Vane motor | 2.3–13.8 hp | Smaller diesel engines, industrial and marine applications |
| SS350 | Vane motor | 19–36 hp | Generators, industrial engines and marine operations |
| SS500 | Vane motor | Up to 44 hp | Medium-sized diesel engines, energy and industry |

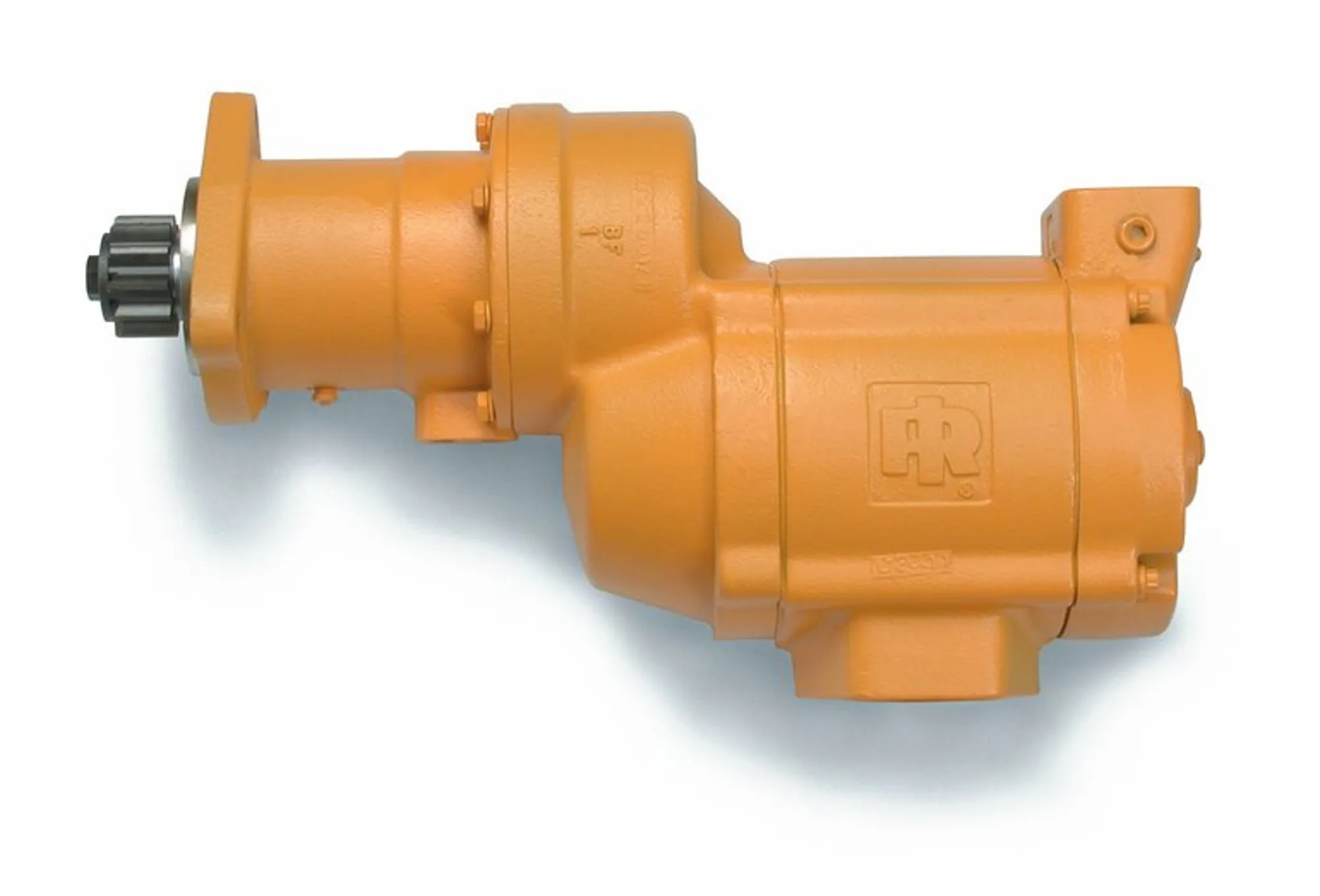

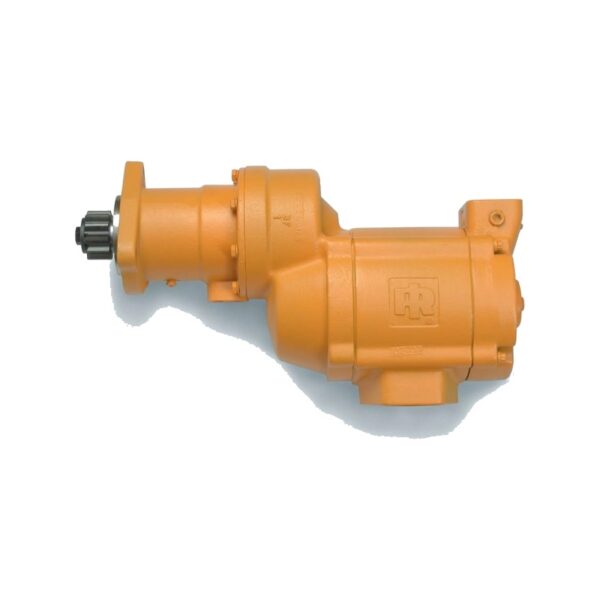

| SS800 | High-output vane motor | 45–75 hp | Larger diesel engines, power generation and heavy applications |
* Selecting the right air starter depends on engine displacement, compression ratio, air pressure, starting torque and installation requirements.
Why ProTech?
- Official Ingersoll Rand distributor and service centre in the Nordics – genuine starters, spare parts and factory warranty.
- Technical advice: we help you choose the right arc, gear ratio, flange, pinion, rotation and orientation for your engine.
- Service and support: service kits, genuine spare parts and Ingersoll Rand service.
Request a quote or technical advice
Request a quote or technical advice – send us the engine model or your current starter code. We will find the right SS configuration for your engine.
