Additional information
| Weight (kg) | |
|---|---|
| Series | Air motors |
| Free speed (rpm) | 850 |
| Maximum Torque (Nm) | 11.3 |
| Power (W) | 280 W |
| Air Consumption (l/s) | 8 |

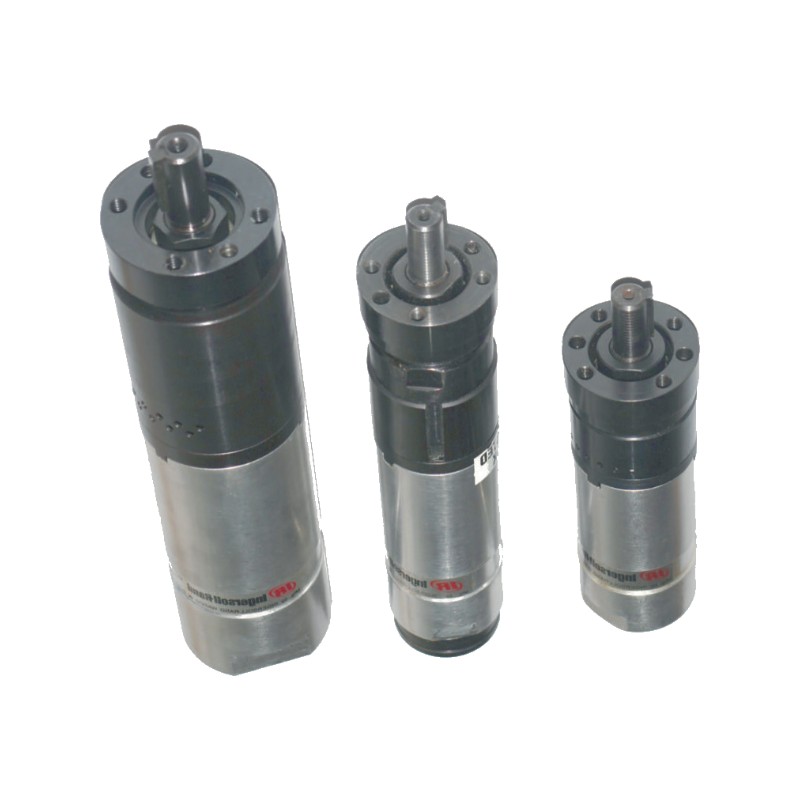

Ingersoll Rand 2202ME-750-SSR1B Planetary Gear Vane Air Motor – Duralite Series, 0.28 kW, 850 rpm, reversible
The Ingersoll Rand 2202ME-750-SSR1B is a Duralite series reversible planetary gear vane air motor. Compact and powerful for its size: planetary gearing with a multi-vane motor, instant start and stop, no overheating under load and no damage when stalled. The series meets ATEX requirements.
Specifications at 6.3 bar: power 0.28 kW, free speed 850 rpm, speed at max power 425 rpm, stall torque 11.3 Nm, torque at max power 6.3 Nm, air consumption at max power 8 l/s, weight 0.45 kg. Side air outlet. Starting torque is approx. 75% of stall torque.
Size the motor at about 70% of the lowest available air pressure – we help you choose power, gearing and mounting.
- 0.28 kW
- 850 rpm
- stall 11.3 Nm
- reversible
- ATEX
