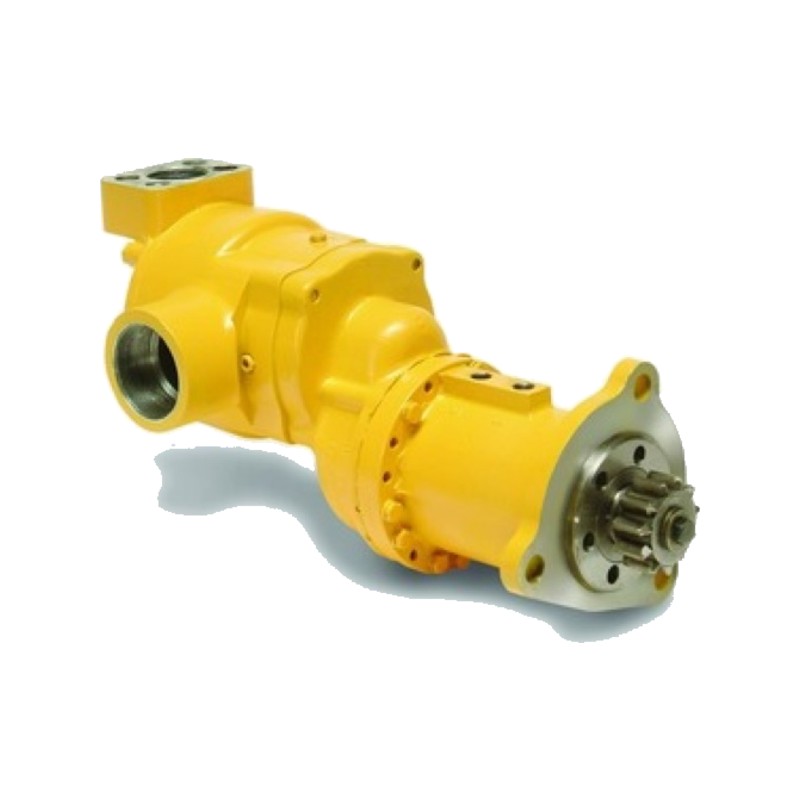

Ingersoll Rand ST599F03R25-02FJ turbine air starter – ST500, 99% arc, SAE 3 flange, 11T pinion DP 6/8, right-hand rotation
Ingersoll Rand ST599F03R25-02FJ is an ST500 series pre-engaged turbine air starter for starting diesel and gas engines in marine, power generation, oil & gas and off-highway applications. Power up to 30 hp (23 kW) and breakaway torque 280 Nm at 6.2 bar.
Orientation -02FJ: position code 02FJ. The orientation only defines how the starter sits on the engine (inlet, exhaust and drive housing positions). The starter itself is the same as other ST599F03R25 variants – choose the one that fits your engine installation, or ask us.
- turbine
- 99% arc
- gear ratio F
- pre-engaged
- SAE 3 flange
- 11-tooth pinion, DP 6/8
- right-hand rotation
Other versions in the ST500 seriesCompare all in a table →
ModelST544 · 44% arcST599 · 99% arc
PinionL94LXX · to engine specR25 · 11 T · DP 6/8R31 · 12 T · DP 6/8
RotationLeft-handRight-hand
