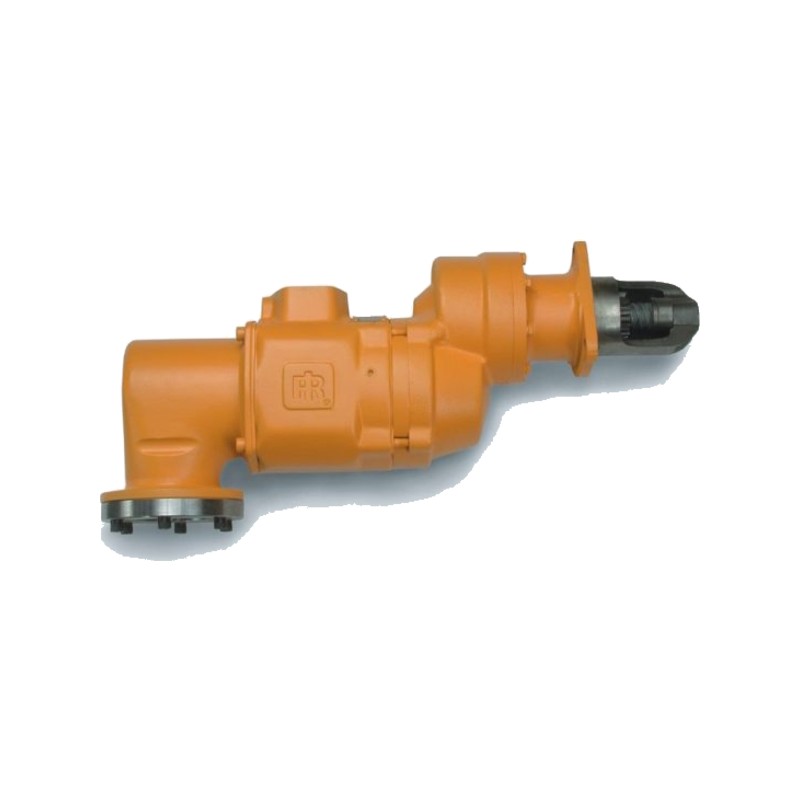

Ingersoll Rand ST999BP03L32 turbine air starter – ST900, 99% arc, SAE 3 flange, 12T pinion DP 6/8, left-hand rotation
Ingersoll Rand ST999BP03L32 is an ST900 series pre-engaged turbine air starter for starting diesel and gas engines in marine, power generation, oil & gas and off-highway applications. Power up to 66 hp (49 kW) and breakaway torque 420 Nm at 6.2 bar.
Standard orientation. The orientation only defines how the starter sits on the engine (inlet, exhaust and drive housing positions). The starter itself is the same as other ST999BP03L32 variants – choose the one that fits your engine installation, or ask us.
- turbine
- 99% arc
- gear ratio B
- pre-engaged
- SAE 3 flange
- 12-tooth pinion, DP 6/8
- left-hand rotation
Orientation diagram
Standard orientation – positions are confirmed at order to suit your engine.
Positions per the Ingersoll Rand installation manual: inlet and exhaust 4 × 90°, drive housing 16 × 22.5°. The drive housing letter shows the position of the control ports (reference hole on inertia models). Always check against your engine installation drawing.
Price and delivery time on quotation.
