Air Milling and Sawing Motors
Air Milling and Sawing Motors
Planetary gear air motors with collet and increased side-load capacity – for milling, sawing and drilling in automation lines and fixtures: 0.19–0.63 kW, up to 20,000 rpm.

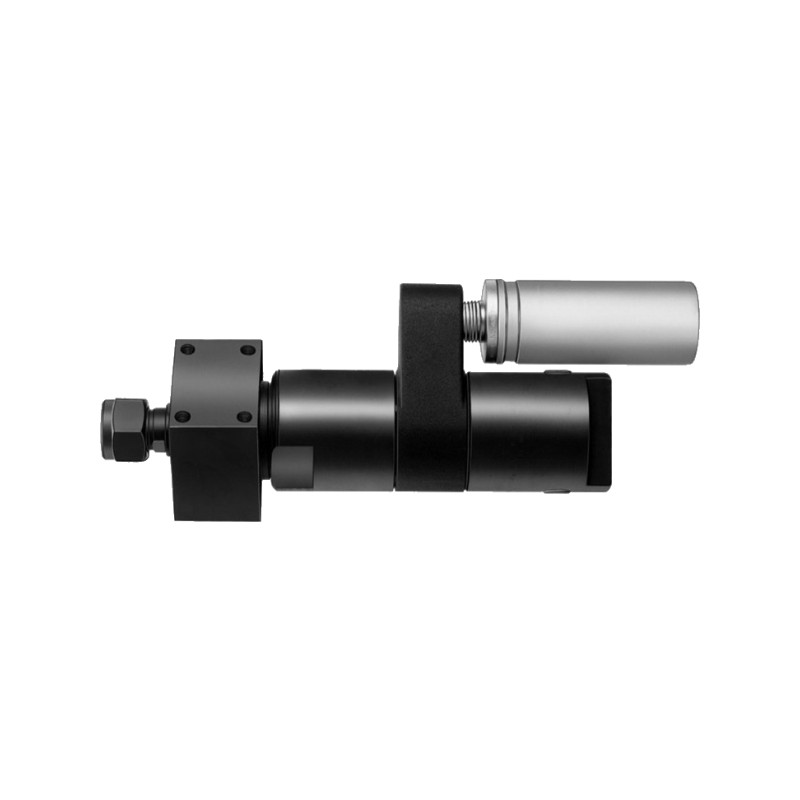

- 000, 0, 2200 and 44 series milling motors.
- Collet up to 1/4″, 3/8″ or 3/4″ depending on series.
- Single or double reduction for the required speed and torque.
ProTech is an official Ingersoll Rand distributor and service centre in the Nordics – we help you choose power, gearing and mounting, and supply genuine spare parts and service.
Request a quote or technical advice
Request a quote or technical advice – send us your current air motor model code or your power, speed and torque requirements.
Technical documentation
Showing all 6 results
| Model | Power (W) | Free speed (rpm) | Max torque (Nm) | Air consumption (l/s) | Weight (kg) | ||
|---|---|---|---|---|---|---|---|
 | 7535-2-C | 190 | 2700 | 2.2 | 8.5 | 0.8 | Request a quote |
| 7537-2-C | 190 | 20000 | 0.3 | 8.5 | 0.8 | Request a quote |
 | 7800-2B | 630 | 18000 | 1.4 | 19.7 | 2.2 | Request a quote |
| 7801-2B | 630 | 4600 | 5.5 | 19.7 | 2.2 | Request a quote |
| 7805-3B | 630 | 350 | 75.5 | 19.7 | 2.86 | Request a quote |
 | 8232-1 | 440 | 19000 | 0.9 | 19.3 | 1.29 | Request a quote |
